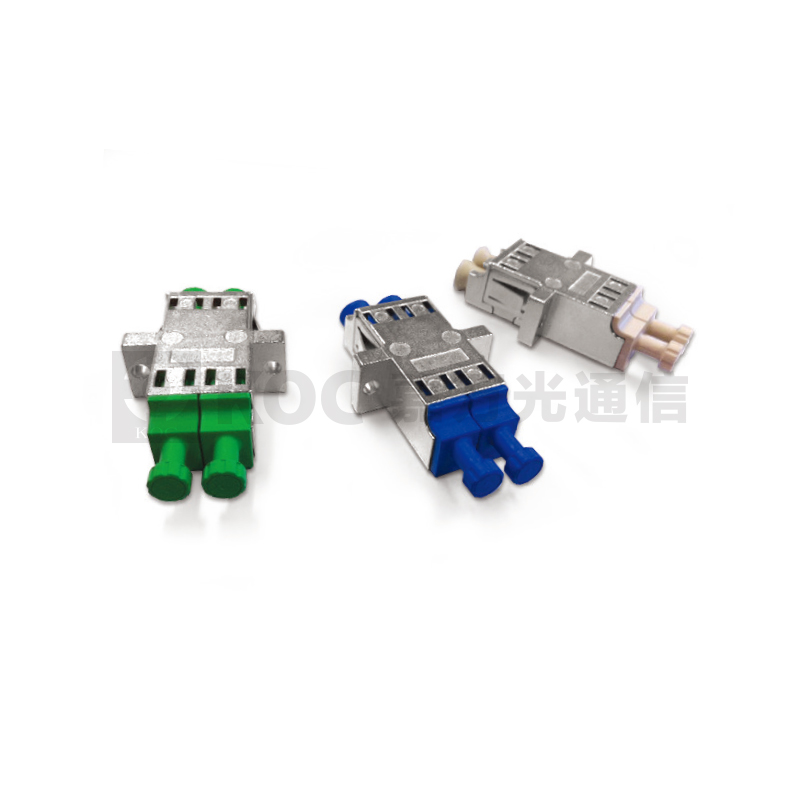

LC Metal Adapter

LC one piece duplex metal adapters are available in symmetrical SC foot print design.

These adapters have color coded dust cap and sleeve holder to ensure right adapter is used for the correct application (PC SM: Blue, PC MM: Beige, APC: Green). Both zirconia and phosphor bronze alignment sleeves are available on this product.

Specification Download

@Email to Sales

Features

• Low insertion loss and back reflection loss

• High precision alignment

• Compact design

• Metal body

• Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

Application

• CATV

• Telecommunication networks

• Local Area Networks (LANs)

• Data processing networks

• Test equipment

• Premise installations

• Gigabit Ethernet

• Video

Specification

Item	Specification
Insertion Loss	＜0.20dB
Durability	<0.20dB typical change, 1000 matings
Operating Temperature	-40 ~ 85°C

Availability

Structure Type	Dust cap Color
Dulpex	SM/PC - Blue
Quad	SM/APC - Green
	MM/PC - Beige/Aqua/Magenta/Black

LC Metal Adapter.pdf
